1. Applications & Benefits

@The LPG system complies with ASTM D2163, EN27491, UOP373 and UOP603 to determine

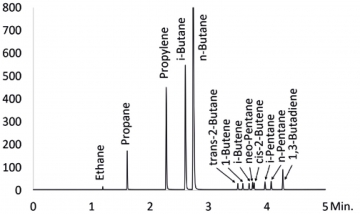

- C1 – C5 hydrocarbons in LPG, Ethylene, Propylene in liquid form if necessary

- CO, CO2 at low ppm level

- Various calculation parameters e.g. vapour pressure, density

@Detection Limit:

The lowest detection limit (LDL) of the DVLS LPG Analyer system is:

- 0.001% for hydrocarbons

- 1 ppm CO, CO2

2. Configuration & Options

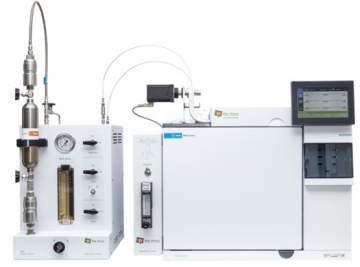

@The DVLS LPG system uses an Agilent Gas Chromatograph configured with:

- FID (Flame Ionization Detector) with EPC

- FID (Flame Ionization Detector) with EPC and a Methanizer

- DVLS Side Carrier to heat the columns

- Pressure station for facilitating LPG and gas sampling (optional)

- PetroReporter (optional)

Method setup and primary data acquisition is done by Openlab Chemstation software.

Mol %/Wt %/Vol % conversion, as well as specific LPG calculations are carried out using DVLS PetroReporter software.
